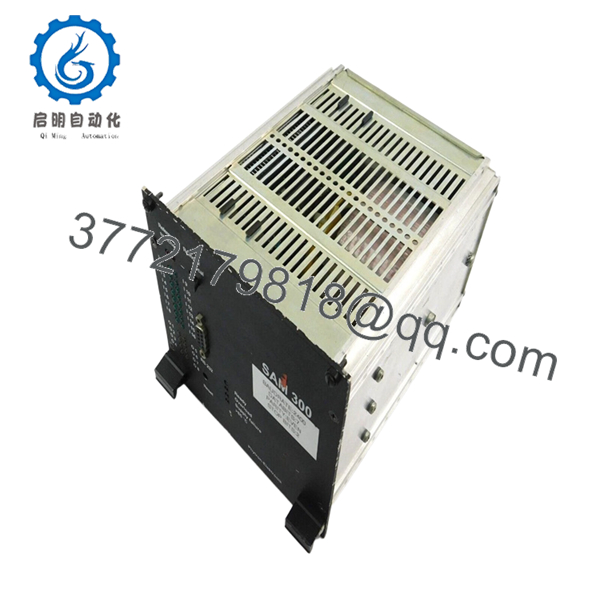

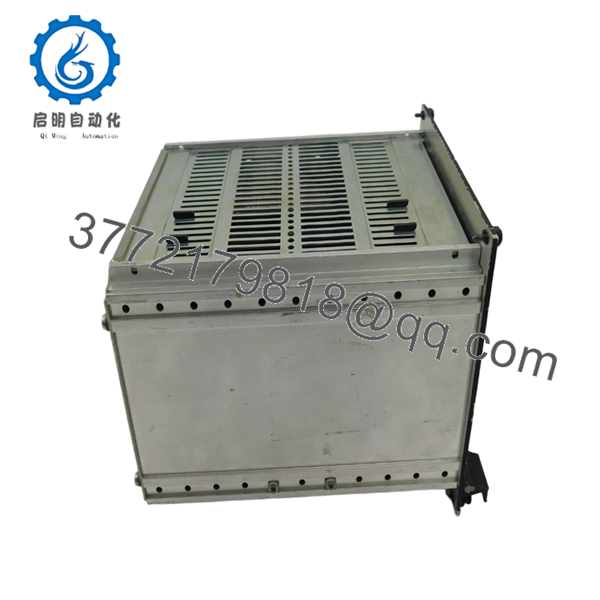

SAM 300 010984593 Industrial Control Module

  • Model: SAM 300 / 010984593
  • Brand: SAM (commonly associated with Phytron-Elektronik systems)
  • Series: Industrial Motion / Drive Control Electronics
  • Core Function: Motion control and signal processing
  • Product Type: Control Module / Drive Interface Board
  • Key Specs: Embedded control logic, motion interface capability, PCB module format
Get a Quote
Categories: , , , , SKU: 300 010984593 Brand:

Description

3. Key Technical Specifications

  • Function Role: Motion control / drive interface module
  • Application: Stepper/servo motor control systems (industrial automation)
  • Part Number: 010984593
  • Manufacturer Association: SAM / Phytron-Elektronik
  • Supply Voltage: Typically 24 V DC (verify per system)
  • Control Type: Embedded motion control logic
  • Interface: Likely proprietary backplane or drive interface
  • Mounting: PCB module (rack or enclosure integration)
  • Condition in Market: Used industrial surplus
  • System Role: Motor control coordination within larger automation system



4. Product Introduction

The SAM 300 (010984593) is an industrial control module typically used in motion control or drive systems, commonly associated with Phytron-based stepper or servo control architectures. It functions as a processing and interface board between higher-level controllers and motor drive hardware.

In field scenarios, modules like this are tightly integrated into OEM motion systems—often found in precision positioning, turbine auxiliaries, or specialized machinery. Replacement requires careful attention to system-specific wiring, firmware behavior, and interface compatibility.

300 010984593
300 010984593
300 010984593
300 010984593



5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 15 minutes)

  • ⚠️ Safety First:
    Lock out power, verify zero voltage, wait 5 minutes for discharge.
  • Tools Required:
    ESD strap, Fluke 115 multimeter, precision screwdriver, labeling tags, smartphone.
  • Data Backup:
    • Record motor parameters (steps, scaling, limits)
    • Document wiring layout and connector positions
    • Capture controller configuration (if accessible)

Stage 2: Removing the Old Module (Estimated Time: 10 minutes)

  1. Open control cabinet.
  2. Label all connectors—especially motor phases and feedback lines.
  3. Disconnect wiring carefully (no force on connectors).
  4. Release mounting clips or rack guides.
  5. Pull module straight out to avoid connector damage.
  • ⚠️ Note: Keep original module for reference during commissioning.

Stage 3: Installing the New Module (Estimated Time: 10–15 minutes)

  1. Wear ESD protection.
  2. Verify model: SAM 300 / 010984593 exactly.
  3. Insert module into slot—ensure proper seating.
  4. Reconnect wiring according to documentation/photos.
  5. Confirm grounding and shielding integrity.

Self-Checklist:

  • Correct module installed
  • Wiring matches original
  • Connectors fully seated
  • Grounding verified

Stage 4: Power-On & Testing (Estimated Time: 20 minutes)

  • Pre-Power Check:
    Verify supply voltage and absence of short circuits.

Power-On Steps:

  1. Power system without mechanical load.
  2. Observe module status indicators (if present).
  3. Verify communication with main controller.
  4. Perform manual jog or positioning test.
  5. Confirm stable motion response.
  • ⚠️ Troubleshooting Note:
    • No motion → Check enable signals and wiring
    • Erratic movement → Likely parameter mismatch
    • Overcurrent trips → Wiring or motor mismatch



6. Frequently Asked Questions (FAQ)

Q1: Is this a Rolls-Royce module?
Not directly. This is typically a SAM / Phytron module, but it may be used inside Rolls-Royce or other OEM systems as a subsystem component.

Q2: Can I replace it with a standard Siemens or Allen-Bradley drive?
Not without redesign. This module is part of a specific motion architecture. Swapping it requires re-engineering control logic and interfaces.

Q3: What’s the most common issue after replacement?
❗ Parameter mismatch (motor tuning or scaling).
I’ve seen systems where the hardware was fine, but incorrect step resolution caused positioning errors immediately.

Q4: Is firmware compatibility a concern?
Yes. Even if hardware matches, firmware differences can affect communication or control behavior. Always verify revision if possible.

Q5: Can this module be hot-swapped?
No. Motion control modules should never be swapped live—risk of drive damage or uncontrolled movement.

Q6: Why is documentation hard to find?
These are OEM-integrated components, not catalog PLC modules. Most documentation is tied to machine-level manuals, not public datasheets.

Q7: What’s the biggest installation mistake?
❗ Not documenting wiring before removal.
Motor phase wiring mistakes can cause reverse motion or immediate faults. Take photos before disconnecting.
