Key Technical Specifications
- Manufacturer: SAM Electronics
- Product family: DAP 2200-BRG
- Part number: 815.001.110 01
- Revision: Rev. D
- Application: Monitoring and control system
- Use case: Bridge / marine alarm panel
- Condition: Typically sold as used or surplus
- Compatibility: Must match the installed DAP 2200 platform
- Availability: Legacy stock only
- Installation note: Verify connector layout and system revision before replacement
Product Introduction

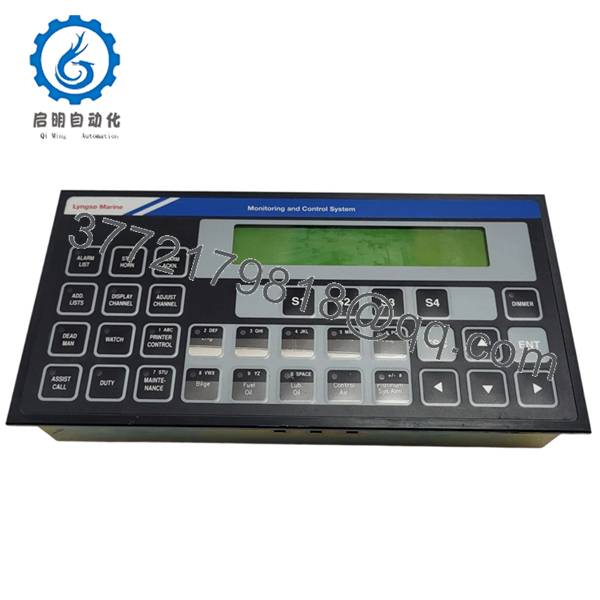

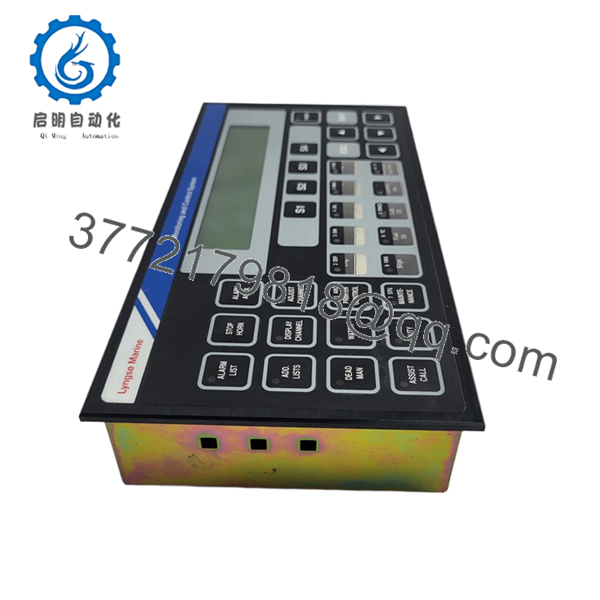

SAM Electronics DAP 2200-BRG 815.001.110 01 is a marine monitoring and control system used in bridge duty alarm applications. It belongs to the DAP 2200 family and is typically sourced as a replacement for legacy shipboard automation hardware.
This unit is bought when the installed system must stay unchanged and the replacement has to match the original part number and revision. Check Rev. D, connector fit, and the host platform before ordering.
- DAP 2200-BRG 815.001.110
- DAP 2200-BRG 815.001.110
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Panel does not power up | Missing supply voltage, fuse issue, or failed unit | ✅ High | Measure input voltage at the panel terminals and check fuses | Verify PSU and wiring before replacing the module |
| Alarm indicators stay active | Configuration mismatch or internal fault | ✅ High | Read the alarm state and compare with the old unit settings | Match revision and configuration first |
| Communication loss to submodules | Bus fault, addressing issue, or connector problem | ✅ High | Check cabling, bus continuity, and node settings | Inspect wiring before calling the panel failed |
| Intermittent resets | Unstable supply or backplane contact issue | ✅ Medium | Monitor supply voltage under load and reseat connectors | Check the power system and contacts |
| Wrong display or alarm mapping | Wrong revision or site configuration | ✅ High | Compare the old unit labels and configuration records | Confirm the exact part number and revision |
| Overheating | Poor cabinet cooling or overload | ✅ Medium | Measure cabinet temperature and inspect airflow | Fix enclosure cooling before replacement |
| Works after reseating | Oxidized pins or loose mounting | ✅ Medium | Inspect and clean contacts, then retest | Service the connectors before buying a new unit |
Contact technical support with photos of the label, connector side, and any diagnostic logs if the issue is still unclear.
Frequently Asked Questions
Q: Is 815.001.110 01 the same as DAP 2200-BRG?
A: Yes, that part number is associated with the DAP 2200-BRG monitoring and control system.
Q: Is this a direct replacement?
A: Only if the part number, revision, and host system match exactly. Legacy marine control gear is sensitive to revision differences.
Q: Is it new or used?
A: Public listings show this unit as used or surplus stock. Condition should be confirmed before purchase.
Q: Can I swap it without shutting down?
A: Do not assume hot-swap support. For this kind of marine panel, power down unless the OEM documentation explicitly allows live replacement.
Q: Why is it cheaper than factory support stock?
A: Because it usually comes from surplus or reclaimed inventory, not current production. That lowers cost, but it also means verification matters more.
Q: Will my settings transfer automatically?
A: Not guaranteed. Save the configuration and document any jumper or address settings before removal.
Q: What should I verify before ordering?
A: Match the exact part number 815.001.110 01, the Rev. D label, the connector layout, and the installed DAP 2200-BRG platform.
