Schneider Electric 170BAI03600 Modicon Momentum 8-Channel Analog Input Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Schneider Electric 170BAI03600 is a versatile 8-channel differential analog input base designed for the compact Modicon Momentum automation family. Operating as an intelligent fieldbus node or standalone I/O base, it converts process signals—such as pressure transducers, flowmeters, and temperature transmitters—into precise 12-bit digital values. Its flexible software configuration supports standard 4–20 mA current loops along with unipolar and bipolar voltage ranges (\pm10 V, 0–10 V), eliminating the need for signal converters.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. As Schneider Electric transitions aging Momentum lines toward legacy status, sourcing factory-fresh surplus units is a critical supply-chain strategy for risk mitigation. Buying genuine New Surplus protects your plant from the hidden failure rates of second-hand components—such as drifted ADC calibration or thermal fatigue—while eliminating long factory lead times and avoiding costly panel redesigns.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Isolate main power using Lock-Out/Tag-Out (LOTO) procedures on the 24 VDC distribution rail and instrument loops.
2. Put on a grounded ESD wrist strap before handling the circuit board housing to prevent static damage to sensitive analog conversion components.
3. Label all field wiring pairs and document current jumper/DIP switch setups on the top communication adapter if one is attached.

Stage 2: Removal

1. Unlatch and pull the removable terminal block (RTB) away from the 170BAI03600 faceplate without disconnecting individual wires.
2. Release the plastic retaining tabs holding the option adapter (Ethernet, Modbus, or Interbus adapter card) to the base.
3. Disengage the DIN rail mounting latch using a flathead screwdriver and lift the base module off the rail.

Stage 3: Installation (Clone & Seat)

1. Snap the new 170BAI03600 base onto the 35 mm DIN rail until the spring-loaded bottom latch clicks firmly into position.
2. Snap the existing communication adapter or processor adapter onto the top interface header of the new base module.
3. Re-seat the pre-wired removable terminal block firmly into the terminal interface slot until fully engaged.

Stage 4: Power-On & Testing

1. Measure incoming supply voltage across terminals L1+ and M- to verify stable 24 VDC power (\pm10\%).
2. Re-apply power to the module and verify that the top RUN LED lights solid green.
3. Connect a calibrated loop calibrator (4–20 mA or 0–10 V) to Channel 1 and cross-reference register values inside the PLC runtime software to verify conversion accuracy.

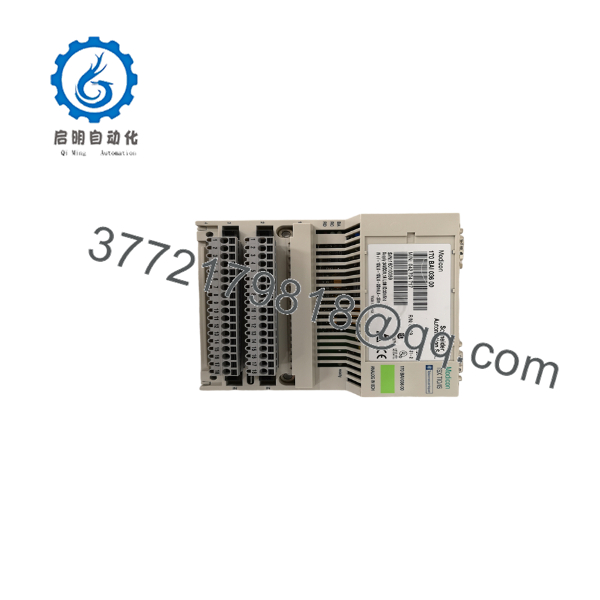

170BAI03600

170BAI03600

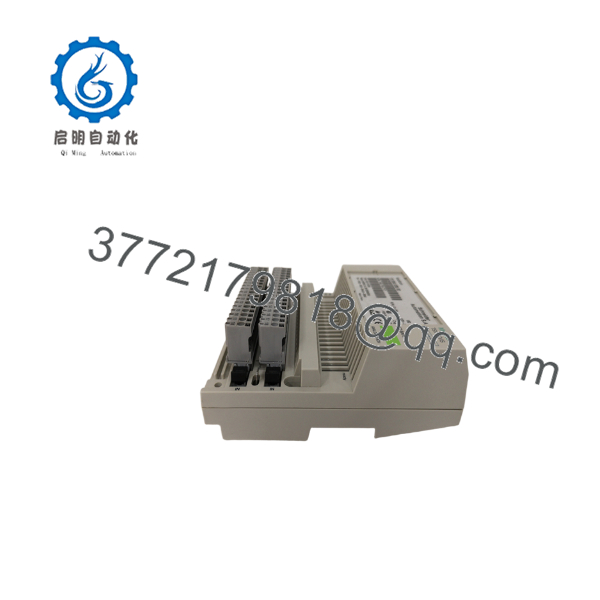

170BAI03600

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: Fully supported in Modsoft, Concept, ProWORX 32, and EcoStruxure Control Expert (Unity Pro) via standard Momentum I/O mapping tables.
• Adapter Interoperability: Compatible with all Momentum Communication Adapters (170ENT11000 Ethernet, 170NEF11000, 170PNT11000 Profibus) and Momentum Processors (170CCC series).
• Configuration Safety: Channel range configuration (4–20 mA vs 0–10 V) is pushed automatically from the adapter or processor upon bootup via software parameters. When swapping hardware, verify that the application program correctly initializes register configuration words to avoid misscaling analog inputs.

Frequently Asked Questions (FAQ)

Is this 170BAI03600 module genuinely brand new?

Yes. This unit is 100% Original New Surplus. It has never seen field service, was never pulled from a working line, and contains zero refurbished or repaired components. It ships in anti-static packaging with pristine backplane headers and zero terminal wear.

Why choose New Surplus over lower-cost refurbished or repaired Momentum bases?

Refurbished analog modules often suffer from degraded internal reference diodes, dried-out filtering capacitors, and inaccurate signal conversion. A small saving on a used module can result in incorrect process readings, batch contamination, or sudden loop failures. New Surplus guarantees factory-level analog accuracy, full signal isolation, and an extended operational life.

Can I mix current (4–20 mA) and voltage (0–10 V) signals on the same 170BAI03600 module?

Yes. The 8 differential channels are individually configurable in software. You can assign current loops to channels 1–4 and 0–10 V instrument signals to channels 5–8 without needing external signal isolators or dropping resistors.

Do I need to calibrate the module before field deployment?

No. Every 170BAI03600 module is factory-calibrated during OEM production. Upon installation and power-up, internal self-calibration routines maintain 12-bit conversion accuracy across normal operating temperatures (0 to 60^\circC).

What terminal block does this module require?

The base utilizes standard Modicon Momentum 18-point removable terminal blocks (such as 170XTS00100 screw terminals or 170XTS00101 spring clamps). If replacing an existing base, your current terminal block snaps directly onto this module.

What warranty terms are included with this purchase?

We back this 170BAI03600 module with a comprehensive 1year replacement warranty. Every unit passes thorough physical and electrical incoming quality control checks to ensure immediate operational readiness in your plant.
