Key Technical Specifications
- Function: Connection interface (IM 314), links an Expansion Device (ED) to a Central Device (CD)
- Maximum Connection Distance: Up to 600 m between ED and CD
- Weight: 0.37 kg
- System Compatibility: SIMATIC S5 family (commonly deployed with S5-115U/135U/155U racks — cross-check your specific rack’s IM slot requirements)
- Country of Origin: Germany
- Hardware Revision: Multiple E-Stand (Ausgabestand) versions exist in the field — confirm your unit’s E-Stand against your existing module before ordering a replacement
Product Introduction
The Siemens 6ES5 314-3UA11 is an IM 314 connection module for the SIMATIC S5 system, used to link a decentralized expansion rack to the central controller rack at distances up to 600 m. It’s a fixture in S5-115U and S5-135U installations still running today in older process lines and legacy machine tool controllers.
Plants keep sourcing this specific part instead of migrating the whole rack because the IM 314 is a mechanically simple, well-understood module — swapping it doesn’t touch CPU programming or I/O configuration elsewhere in the system. It’s a maintenance part, not a system upgrade, and that’s exactly why buyers want a tested unit rather than a gamble on an unverified pull.

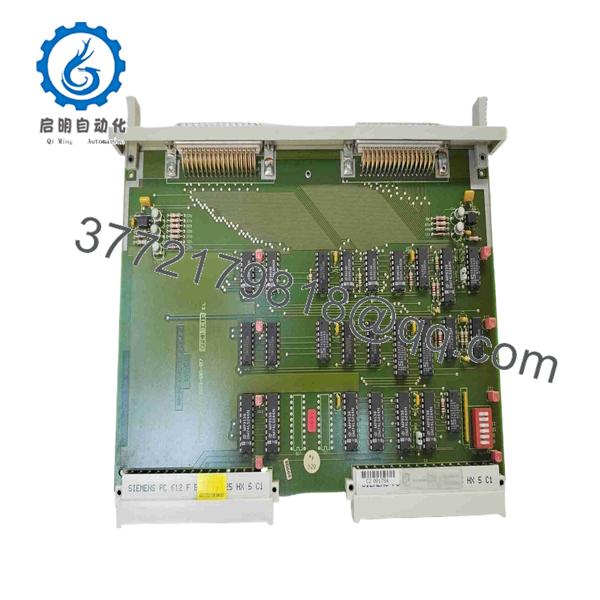

6ES5314-3UA11

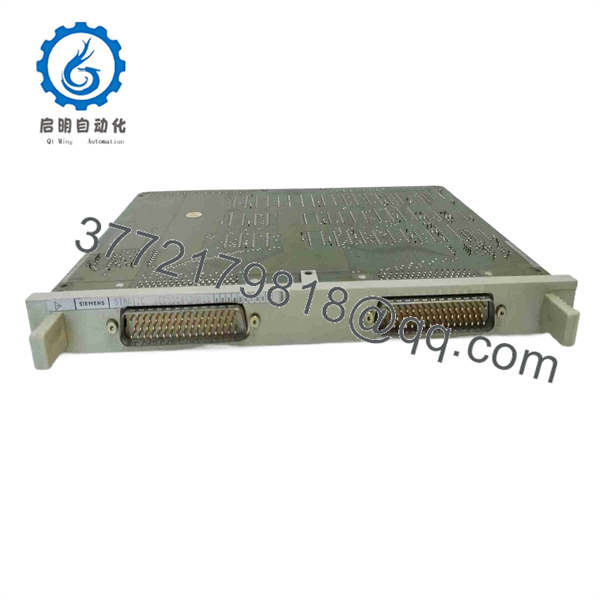

6ES5314-3UA11
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Expansion rack not recognized by CPU | IM 314 module failure or seating fault | ✅ High | Reseat module in rack, check for bent backplane pins | If reseating doesn’t resolve it, module likely needs replacement |
| Intermittent comms loss between ED and CD | Cable run near or beyond 600 m limit, cable damage | ✅ High | Measure actual cable run length, inspect cable for damage or corrosion at connectors | If within spec and cable is sound, suspect the module itself |
| Total rack failure across ED | Power supply fault upstream of the IM 314 | ❌ Low | Check rack power supply output voltage before touching the IM module | Rule out the PSU first — a healthy IM 314 won’t fix a dead rack supply |
| Sporadic I/O errors only on expansion rack | Ground loop or shielding issue on ED-CD cable run | ❌ Low | Check shield grounding at both ends per the S5 wiring manual | Usually a wiring/grounding fix, not a module fault |
| CPU throws a rack fault on startup only | E-Stand mismatch between IM 314 pair (ED-side and CD-side modules) | ✅ High | Check E-Stand markings on both modules in the pair | Some S5 hardware revisions require matched E-Stand pairs — verify before condemning either module |
If the fault persists after checking cable length, grounding, and E-Stand match, send us your rack configuration and the fault code sequence — we can usually narrow it down from there.
Frequently Asked Questions (FAQ)
Is this module still manufactured by Siemens?
No. The SIMATIC S5 platform has been out of production for a long time — Siemens moved the industry to S7 decades ago. What we carry is pulled and tested surplus stock, not new factory production, and we’re upfront about that with every S5 part we sell.
Can I just swap this in for my failed IM 314 without any reconfiguration?
In most cases yes — the IM 314 doesn’t hold program logic or I/O configuration, so there’s nothing to reprogram. The one thing worth checking is the E-Stand (hardware revision) on your existing module. Some S5 installations pair ED-side and CD-side IM modules by revision, so it’s worth confirming before you assume a drop-in fit.
Does the 600 m distance rating mean I can run any cable type?
No — that figure assumes the cable type and shielding Siemens specified for the IM 314 pair. Running unshielded or undersized cable at anywhere near that distance is asking for intermittent faults. Check the S5 installation manual for the exact cable spec before you commit to a long run.
Why is a used part like this still worth buying instead of finding new stock?
Because there isn’t new stock — this platform is decades past end of production. A tested used unit from a working system is a more reliable bet than an untested one sitting in a drawer, which is the real alternative most buyers are facing.
What’s your testing process for a module this old?
Visual inspection for corrosion, damaged pins, or rework marks, then a functional test on our in-house S5 rack — we power it up in a live ED/CD configuration and confirm clean rack recognition before it ships. Ask and we’ll send photos from the specific unit.
Is there a modern replacement I should consider instead of repairing this rack?
That’s a bigger conversation than a parts swap — migrating off S5 means replacing the CPU, I/O, and likely rewriting the program in STEP 7 or TIA Portal. If you’re just keeping an existing line running, a tested IM 314 is the direct, low-disruption fix. If you’re planning a platform migration anyway, it’s worth talking through timing with your integrator before spending on S5 parts.
