3. Key Technical Specifications
| Parameter | Specification Value |
| Manufacturer | Invensys Triconex / Schneider Electric |
| Part Number | 9662-810 |
| Panel Architecture | Commoned power supply design |
| Output Channels | 16 field output points |
| Nominal Voltage | 24 VDC |
| Maximum Total Current | 16 A continuous across common bus |
| Circuit Protection | Individual fuse per output point with blown-fuse LED indicator |
| Field Terminal Type | High-density terminal block with common power terminals (PWR+, PWR−) |
| Module Compatibility | Triconex 3604E 24 VDC Digital Output Module |
| System Compatibility | Tricon v9, v10, and subsequent compatible architectures |
| Mounting | Standard DIN rail mounting |
4. Product Introduction & Supply Chain Strategy
The Triconex 9662-810 is a 16-point commoned digital output field termination panel designed for safety-critical industrial automation applications. Serving as the interface between Triconex 3604E digital output modules and field actuators, solenoids, or relays, this termination panel provides circuit protection, blown-fuse diagnostics, and signal distribution in Safety Instrumented Systems (SIS).
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Maintaining a genuine New Surplus 9662-810 on-site protects your facility from long OEM factory lead times and eliminates emergency downtime risks in oil refineries, chemical plants, and power generation facilities. Refurbished field termination panels frequently carry hidden insulation degradation, stressed terminal connections, or compromised fuse holders that can induce intermittent field faults. Investing in verified New Surplus hardware guarantees zero backplane wear, pristine connection points, and 100% field loop integrity.

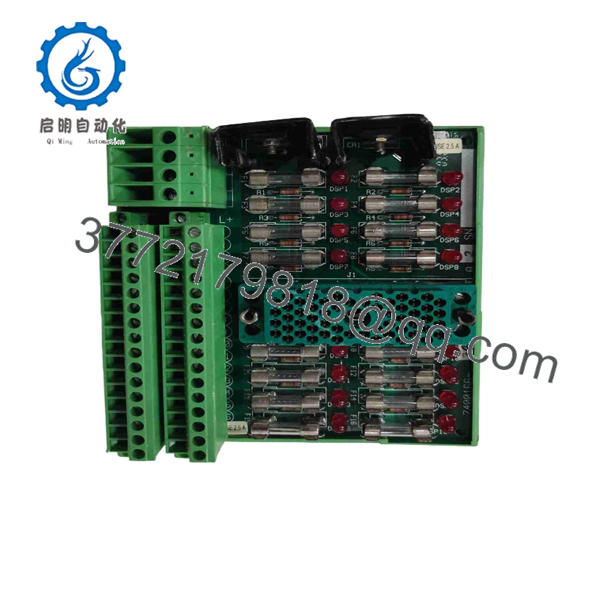

9662-810
9662-810
5. Installation & Configuration Guide
1.Pre-Installation Preparation & Safety:Perform LOTO and verify ESD safety.
Establish proper Lockout/Tagout (LOTO) protocols for the 24 VDC field loop power supply feed. Strap on an ESD-grounded wrist strap before opening the system enclosure. Inspect the 9662-810 mounting location on the DIN rail for cleanliness and proper grounding continuity.
2.Legacy Component Removal:Disconnect field wiring and backplane ribbon cables.
Unplug the multi-conductor backplane interface cable connecting the old termination panel to the 3604E DO module. Systematically tag and disconnect all 16 field output wires and incoming 24 VDC power feed lines (PWR+ / PWR−) from the field terminal strip. Release the DIN rail retaining clip and extract the old panel.
3.Mechanical Installation & Field Wiring:Mount module and terminate field connections.
Snap the new 9662-810 unit securely onto the 35mm DIN rail. Wire the primary 24 VDC power supply to the main supply terminals (PS1/PS2 or PWR+/PWR−). Connect field load wires to their corresponding channel terminals (1 through 16), ensuring proper polarity to prevent short-circuit trips. Connect the interface cable directly to the associated 3604E module backplane slot.
4.Power-On Verification & Commissioning:Verify field loop continuity and monitor status LEDs.
Energize the 24 VDC field supply rail. Check the individual blown-fuse status LEDs on the panel to confirm all internal channel fuses are intact. Force a test channel bit via the Triconex diagnostic software suite to verify relay or actuator command execution at the field device.
6. Firmware/Software Versions & Upgrade Notes
- System Firmware Level: Designed for native operation in Triconex system software releases v9.x through v10.x.
- Module Compatibility: Configured specifically to interface with 24 VDC Digital Output Module 3604E. Always verify that the TriStation 1131 software configuration matches the hardware model and point density assigned to the slot.
- Hardware Revisions: Minor hardware revision bumps on termination panels do not alter field wiring pinouts or channel mapping, but verify fuse current ratings match the connected field load specifications prior to energizing.
7. Frequently Asked Questions (FAQ)
Q: Is this 9662-810 panel Brand New Surplus or refurbished stock?
A: This unit is 100% Brand New Surplus stock. It has never seen field service, was never pulled from a working rack, and has not undergone refurbishing or board repairs. It retains original manufacturing standards and anti-static packaging.
Q: Why should I choose New Surplus over a cheaper refurbished panel?
A: Safety Instrumented Systems (SIS) demand uncompromising hardware reliability. Refurbished panels often harbor microscopic thermal stress fractures, worn spring terminal clamps, or oxidized pin contacts that lead to intermittent open circuits. Saving a small amount on a used component introduces unpredictable trip risks that can cause tens of thousands of dollars in emergency plant shutdown costs.
Q: What indication is provided if a field wiring short blows a channel fuse?
A: The 9662-810 features dedicated blown-fuse indicator LEDs for every individual output channel. If a field short occurs, the corresponding LED illuminates immediately, allowing maintenance teams to diagnose and isolate field wiring issues without pulling the main DO card.
Q: Does replacing the 9662-810 require reprogramming the Triconex PLC?
A: No, the 9662-810 is a passive field termination assembly (FTA/FTP). As long as you replace it with an identical 9662-810 model and maintain identical channel wiring, no logic modifications or TriStation program updates are required.
Q: What warranty coverage applies to this unit?
A: This New Surplus 9662-810 panel includes a comprehensive 1-year replacement warranty covering functional performance and hardware defects.
