3. Key Technical Specifications
- Panel type: Current input termination panel (0–5 VDC)
- Points: 16
- Terminals: 16 power output (+) and 16 current input (–)
- Current limiting: 180 Ω series resistor on each positive terminal
- Conversion: Precision 250 Ω resistor per channel for 4–20 mA → 1–5 V (0–5 VDC range)
- Power: Supports redundant 24 VDC sources with diode ORing
- Compatible modules (32-point): – 3700 / 3700A (0–5 VDC differential TMR) – 3721 (0–5 VDC or –5 to +5 VDC configurable) – 2770H (HART analog input interface)
- For 32-point modules: Two panels required
- Labels: Two sets supplied (1–16 and 17–32)
4. Product Introduction
The Triconex 9761-210 is a 16-point current input termination panel designed for use with Triconex analog input modules in safety instrumented systems. It converts field 4–20 mA signals to the 0–5 VDC range required by the modules using precision 250 Ω resistors and provides 180 Ω current limiting on each positive terminal.
The panel supports redundant 24 VDC field power with diode ORing for higher availability. Because compatible analog input modules have 32 points, two 9761-210 panels are normally installed per module—one for channels 1–16 and one for 17–32—with matching labels provided.

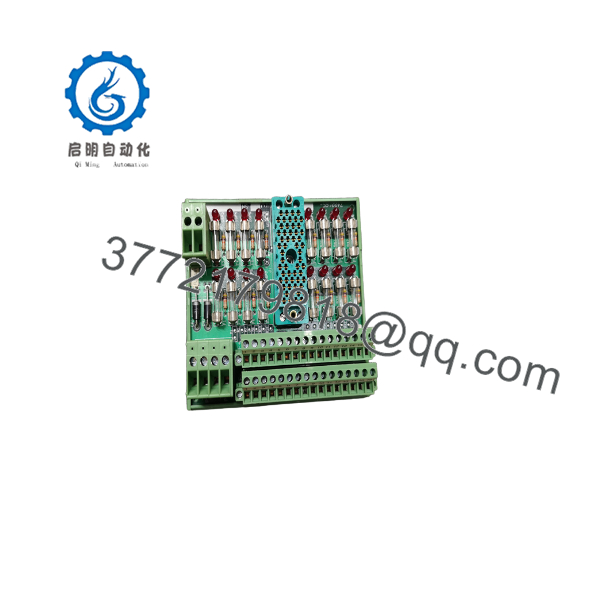

9761-210
9761-210
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Incorrect or zero reading on AI channel | Open 250 Ω resistor or blown current-limit path | ✅ High | Measure resistance across input terminals (should be ≈ 250 Ω); check continuity of 180 Ω path | Replace panel if resistor is open or out of tolerance |
| Channel reads high / over-range | Field current too high or shorted wiring | ✅ Medium | Measure actual field current with multimeter in series | Correct field device or wiring; do not exceed module input limits |
| No power to field transmitters | Redundant 24 VDC supply missing or diode failure | ✅ High | Measure voltage at PWR+ terminals with both supplies connected | Verify both 24 VDC sources and diode ORing integrity |
| Only half the module channels work | Second termination panel missing or mislabeled | ✅ High | Confirm both 1–16 and 17–32 panels are installed and correctly labeled | Install second panel and apply correct labels |
| Intermittent readings | Loose terminal or poor field connection | ✅ Medium | Re-torque terminals; inspect for corrosion | Use proper ferrules and maintain torque specification |
If readings remain incorrect after resistor and power checks, photograph the panel wiring, note the affected channels and module type, and contact technical support with serial numbers.
6. Frequently Asked Questions (FAQ)
Q: What does the 9761-210 do? A: It is a current input termination panel that converts 4–20 mA field signals to 0–5 VDC for Triconex analog input modules using precision 250 Ω resistors, while providing current limiting and support for redundant 24 VDC power.
Q: How many panels are needed for a 32-point analog input module? A: Two panels. One covers points 1–16 and the second covers points 17–32. Matching labels are included.
Q: Which modules is it compatible with? A: Primarily 3700, 3700A, 3721 (0–5 VDC or ±5 VDC), and 2770H HART analog input interface modules.
Q: Does it support HART? A: Yes, when used with the 2770H HART analog input interface module.
Q: What is the purpose of the 180 Ω and 250 Ω resistors? A: The 180 Ω resistor provides current limiting on the positive power terminal. The 250 Ω precision resistor converts the field current (4–20 mA) into a 1–5 V signal that the analog input module can measure.
Q: Can I use this panel with voltage input modules? A: No. This is specifically a current-input termination panel. Voltage-input modules use different termination panels (e.g., 9763-810 series).
Q: Is the 9761-210 still available? A: It remains available through authorized and surplus channels for Triconex v9/v10 systems. Confirm stock and any superseding part numbers when ordering.
