Key Technical Specifications
- Product Type: Analog Field Terminal Module (FTM) — passive wiring interface, no onboard processor
- Interface: VMEbus module interface, pairs with a Woodward Analog Combo module in a MicroNet rack
- I/O Channels Supported: 4x speed sensor inputs, 8x analog inputs, 4x analog outputs, 2x proportional actuator driver outputs
- Excitation: 2 mA
- Accuracy: 0.5%
- Isolation: 1,500 Vac continuous
- Input Impedance: 2.2 MΩ
- CMRR: −90 dB
- Frequency Response: 3 kHz
- Field Wiring Connector: 37-pin, screw-clamp terminals
- Dimensions: 6.25 in x 3.50 in x 2.75 in
- Weight: 0.55 lbs
Note: search listings for this part number aren’t fully consistent — a few resellers describe it as a standalone digital governor controller with its own CPU, which doesn’t match the terminal-board description the majority of distributors give. Confirm against the OEM MicroNet documentation for your specific application before you spec a replacement.
Product Introduction

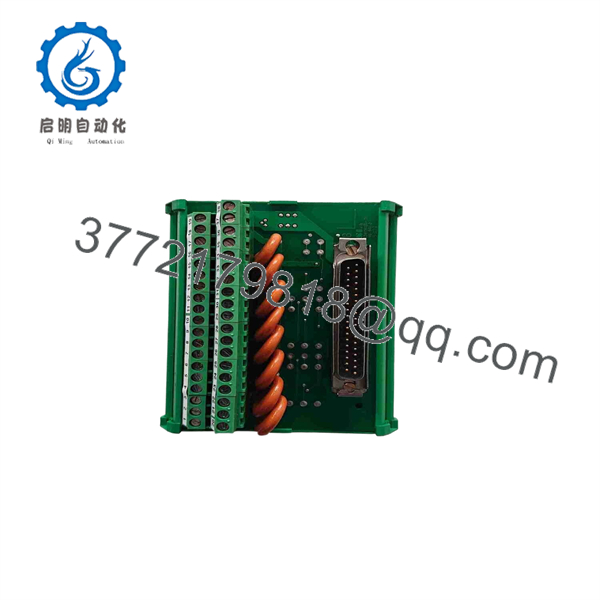

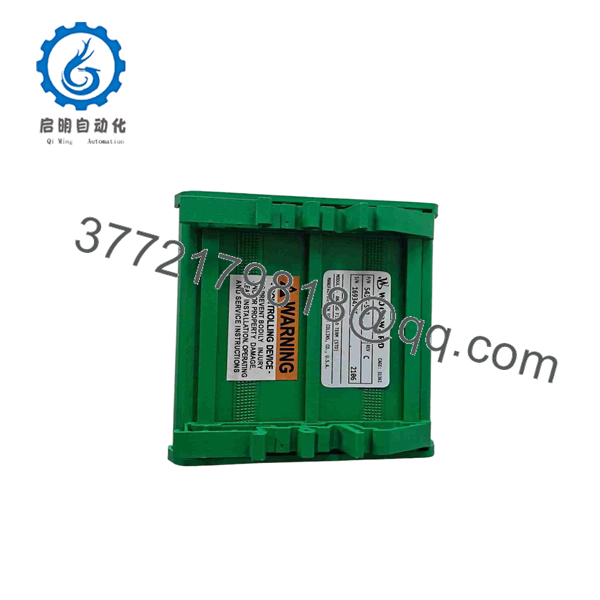

The Woodward 5437-523 is a Field Terminal Module built for the MicroNet control platform. It brings field wiring — speed sensor, analog I/O, and actuator driver signal lines — into a VMEbus-mounted Analog Combo module through a 37-pin connector and screw-clamp terminals, so techs aren’t landing wires directly on the processing card.
Because it’s a passive terminal board rather than an active card, swapping it doesn’t touch the Combo module’s calibration or firmware. Field-selectable jumpers let you match latent fault detection logic to your specific interfaced circuit without rewiring the loop itself.
5437-523
5437-523
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Analog input reads full-scale or zero, out of expected range | Broken field wiring, or damaged input protection on the FTM | ✅ High | Measure the raw signal directly at the field device, ahead of the FTM terminal | Verify the field wiring and sensor before swapping the terminal board |
| Speed sensor channel shows no signal | Failed magnetic pickup or open wiring — not necessarily the FTM | ❌ Low | Measure pickup output directly at the sensor with a scope or multimeter | Rule out the sensor and cable run first |
| Latent fault / diagnostic alarm on an analog channel | Jumper configuration on the FTM doesn’t match the interfaced circuit type | ✅ High | Check the field-selectable jumper positions against your wiring diagram | Reconfigure the jumpers to match — this is a common misconfiguration, not a hardware failure |
| Actuator driver output non-responsive | Wiring fault between the FTM and actuator, or a fault upstream in the Combo module | ⚠️ Medium | Measure the output at the FTM terminal while commanding it | Isolate whether the fault sits in the FTM, the cable run, or the Combo module itself |
| Intermittent noise or drift on an analog reading | Poor cable shielding or grounding at the FTM terminal block | ❌ Low | Check shield termination and confirm cable routing is clear of power wiring | Correct grounding and shielding before condemning the board |
If these checks don’t resolve it, contact technical support with photos of your jumper settings and the wiring diagram for your specific interfaced circuit before ordering a replacement.
Frequently Asked Questions (FAQ)
What exactly is a “Field Terminal Module,” and why isn’t it a processor card?
The FTM is the passive wiring interface — it just brings field signals into screw-clamp terminals and routes them to the Analog Combo module, which does the actual signal processing. That’s why a bad FTM and a bad Combo module can look identical from the symptom side; check both before you commit to a part.
Is this a drop-in replacement for the FTM in my MicroNet rack?
Generally yes for the same part number, but the field-selectable jumper settings can vary depending on how your specific circuit was configured at commissioning. Document your existing jumper positions before you pull the old board so you can mirror them exactly.
Will I need to reconfigure anything in software after swapping this?
No — the FTM itself holds no software configuration. The Combo module’s setup stays untouched. The only thing you need to carry over physically is the jumper configuration on the board.
Can I hot-swap this terminal board while the turbine or engine is running?
No. De-energize the loop first. With speed sensor and actuator driver circuits present, working this board live risks a false trip or a damaged output driver.
Does buying this include the Analog Combo module itself?
No — this is the terminal board only. The Combo module, which does the actual signal processing, is a separate Woodward part number. Confirm you’re ordering the right combination if you need both.
Why do prices vary so much between “new,” “new surplus,” and “rebuilt” listings?
Those are different conditions: new is unused factory stock, new surplus is unused stock pulled from decommissioned equipment or excess inventory, and rebuilt/refurbished means the board was tested and serviced before resale. Ask the seller which applies before you order.
What warranty comes with this part?
That depends on the seller for a part this specialized — some quote a standard one-year warranty on new and original stock, others sell rebuilt units under different terms. Get the specifics in writing, especially given how long lead times can run if you need a second one.
