3. Key Technical Specifications
The Woodward 5466-1158 high-density discrete I/O card handles binary field signals such as trip contact states, valve limit switches, alarm interlocks, and relay driver command outputs in MicroNet turbine control systems.
| Parameter | Value |
|---|---|
| Part Number | 5466-1158 |
| Manufacturer | Woodward |
| System Architecture | MicroNet Simplex, Dual, and TMR Systems |
| Channel Count | 48 Discrete Channels (Configurable Input/Output) |
| Input Voltage Range | 18 to 32 VDC (Nominal 24 VDC) |
| Filtering & Isolation | Optical isolation up to 500 VDC to frame ground |
| Response Time | Fast scan cycle rate (< 1 ms update to main CPU) |
| Power Consumption | 6.8 W typical (supplied via MicroNet backplane) |
| Operating Temperature | -40°C to +70°C |
| Diagnostics | Onboard field-side LED status monitoring per channel group |
4. Product Introduction & Supply Chain Strategy
The Woodward 5466-1158 is a 48-channel high-density discrete I/O module designed for high-reliability MicroNet digital turbine architectures. It functions as the primary digital interface between plant field contact devices—such as emergency stop buttons, breaker status switches, and fuel shutoff solenoids—and the central MicroNet CPU processing core.
Stocking this module as a New Surplus spare is a vital total cost of ownership (TCO) management decision. A discrete I/O failure can cause partial or complete loss of plant interlock sensing, resulting in protective trips or an inability to start the turbine. Procuring an uninstalled, original New Surplus 5466-1158 card delivers immediate installation capability, eliminating long factory order queues while bypassing the high failure rates and hidden circuit aging inherent in second-hand, refurbished parts.
5. Installation & Configuration Guide
Critical Safety Warning
Discrete I/O cards often route external 24 VDC or 125 VDC wet field power directly through the backplane connectors. Always isolate external field power sources using lock-out/tag-out (LOTO) procedures prior to module insertion or removal to avoid short-circuiting backplane traces.
1
Pre-Installation & Channel Mapping
Prerequisite
1.Pre-Installation & Channel Mapping:Prerequisite.
Document the active channel mapping and wiring schematics in your Woodward GAP logic project. Put on a grounded ESD wrist strap before touching the module or chassis.
2
Field Power Isolation & Removal
Power & Extraction
2.Field Power Isolation & Removal:Power & Extraction.
Isolate external contact power to the field terminal blocks connected to the 5466-1158 card. Unplug the high-density D-sub cable connectors from the module faceplate. Loosen top and bottom captive screws, then press the ejector handles to disengage the board from the VME backplane.
3
Module Inspection & Insertion
Hardware Swap
3.Module Inspection & Insertion:Hardware Swap.
Inspect the backplane multi-pin connectors on the replacement 5466-1158 for bent pins or debris. Align the board edges with the MicroNet card guides and push firmly until the ejector levers seat fully. Tighten top and bottom retaining screws to ensure proper grounding.
4
Re-connection & Verification
Commissioning
4.Re-connection & Verification:Commissioning.
Reattach field I/O cable harnesses and restore field contact power. Verify that the front-panel RUN LED illuminates green and FAULT stays off. Perform a point-to-point toggle test on key discrete inputs to confirm state changes in AppManager diagnostics.

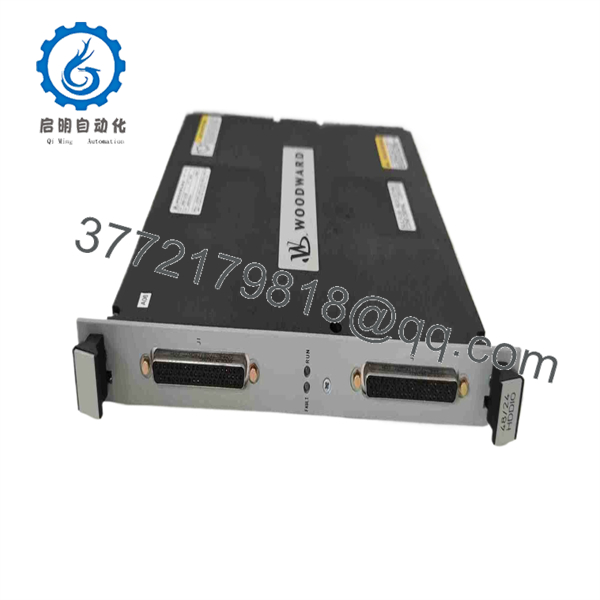

5466-1158

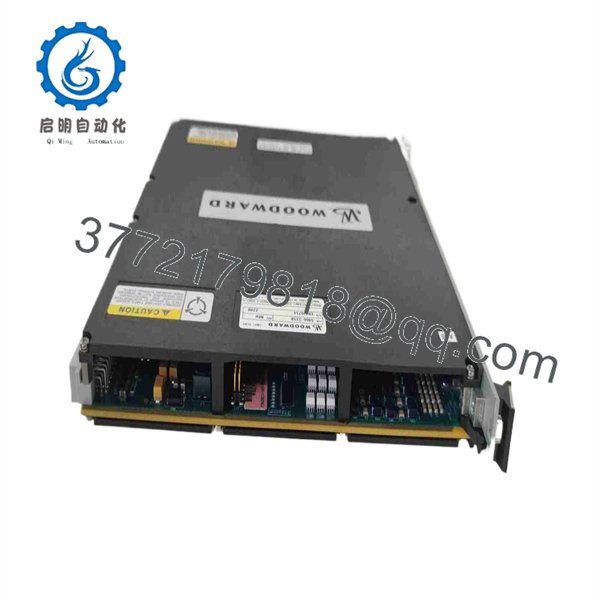

5466-1158
6. Firmware/Software Versions & Upgrade Notes
- Software Compatibility: Fully supported within Woodward GAP (Graphical Application Program) and AppManager diagnostics environments.
- Hardware Drivers: The 5466-1158 is recognized as a standard high-density discrete card by the MicroNet OS block library; no independent board firmware flashing is required by the end-user.
- Compatibility Considerations: Verify that your chassis terminal ribbon cables or High-Density Analog/Discrete (HDAD) terminal blocks match the pinout configuration required by the 5466-1158 revision.
- Handling Warning: Do not plug or unplug field cable harnesses while wet 125 VDC sensing power is applied. Arcing across high-density pins can damage onboard optocouplers.
7. Frequently Asked Questions (FAQ)
Q: Is this Woodward 5466-1158 module genuinely new, or is it pulled from an active panel? A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.
Q: Why should I buy New Surplus instead of a cheaper refurbished I/O board? A: Refurbished I/O boards frequently contain degraded optocouplers and fatigued output transistors caused by thermal cycling. A single failed input channel on a refurbished board can misreport a trip signal, causing an unplanned $50,000 shutdown. New Surplus guarantees original OEM component integrity and full operational service life.
Q: Can I hot-swap this 5466-1158 discrete card while the MicroNet system is online? A: Hot-swapping is physically supported by the MicroNet VME backplane design, but software safety depends on your system architecture (TMR vs. Simplex). On Simplex systems, pulling an active discrete card will trigger safety interlocks and trip the turbine. Always follow your site’s safety bypass guidelines.
Q: Does this board support both 24 VDC and 125 VDC discrete inputs? A: Channel voltage thresholds depend on the specific field wiring and internal jumper or termination module configurations used with the 5466-1158 card. Always check your site’s hardware drawing before applying external field voltage.
Q: What warranty and quality verification accompany this unit? A: Every 5466-1158 unit is packaged in ESD-safe protective wrapping and accompanied by a detailed QC inspection report alongside a 1-year full replacement warranty from the date of shipment.
