Woodward 8200-226 Servo Position Controller

Key Technical Specifications

Woodward’s current Manual 26236 identifies 8200-226 as the latest released model of the SPC and states that it replaced 8200-224 and 8200-225. The controller accepts position demand through DeviceNet, 4–20 mA, or both, and controls a single-coil hydraulic or pneumatic actuator using position feedback.

The electrical configuration needs particular attention. Woodward documentation specifies an 18–32 VDC supply, while secondary technical listings report a 24 VDC nominal supply and configurable servo-drive current. Do not use generic distributor specifications for a different SPC revision when setting actuator current.

Product Introduction

The Woodward 8200-226 SPC (Servo Position Controller) is a digital actuator controller for positioning hydraulic or pneumatic single-coil actuators. It receives a position demand from a control system through DeviceNet, 4–20 mA, or both, compares that demand with position feedback, and drives the actuator accordingly. Woodward identifies it as the successor to the 8200-224 and 8200-225.

The controller is configured and monitored through Woodward’s SPC Service Tool using a PC serial connection. For replacement work, preserving the existing configuration is important; Woodward provides a specific replacement procedure for loading a saved configuration into an 8200-226 or 8200-227.

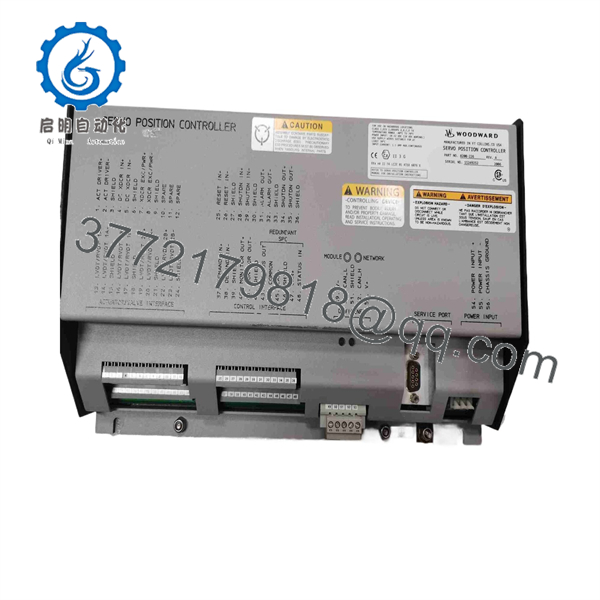

8200-226

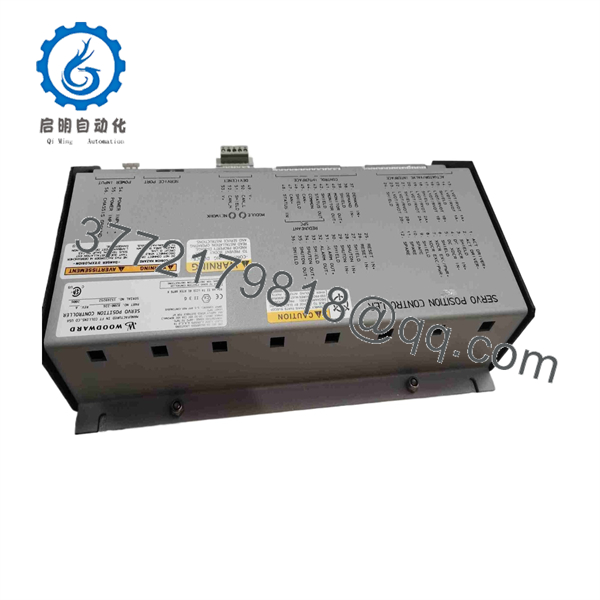

8200-226

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Estimated time: 20–30 minutes

1. Notify operations and place the turbine, engine, or actuator system in its approved maintenance state.
2. Apply the site’s LOTO procedure.
3. Isolate the 24 VDC control supply.
4. Wait at least 5 minutes before handling the controller.
5. Verify the supply is de-energized with an appropriately rated multimeter.
6. Wear a grounded ESD wrist strap.
7. Prepare:
   • Digital multimeter
   • PH1 screwdriver
   • Wire labels
   • Camera/phone
   • PC with the applicable SPC Service Tool
   • Existing configuration backup
8. Record the exact model and hardware revision.
9. Photograph every connector and wiring termination.
10. Save the existing SPC configuration before removing the controller whenever the unit remains accessible.

⚠️ Do not start with the wiring. Start with the configuration backup. Woodward specifically documents loading a saved configuration into a replacement 8200-226, making the configuration file an important part of the replacement procedure.

Stage 2: Removing the Old Module

Estimated time: 15–25 minutes

1. Confirm the actuator is mechanically safe.
2. Verify the 24 VDC supply is isolated.
3. Label the supply, demand, feedback, actuator, communication, and service connections.
4. Photograph terminal positions.
5. Disconnect wiring without pulling on the conductors.
6. Remove mounting hardware.
7. Remove the SPC from the cabinet.
8. Inspect the wiring for loose terminals, damaged insulation, corrosion, and grounding problems.
9. Keep the old controller until the replacement has passed functional testing.

⚠️ Do not disconnect the position-feedback wiring without documenting it first. A swapped feedback pair can make the actuator move in the wrong direction or prevent closed-loop control from stabilizing.

Stage 3: Installing the New Module

Estimated time: 20–30 minutes

1. Confirm the replacement is marked Woodward 8200-226.
2. Compare the connector layout against the original unit.
3. Verify the replacement hardware revision.
4. Mount the SPC securely.
5. Reconnect the 18–32 VDC supply.
6. Reconnect the actuator wiring according to the approved Woodward schematic.
7. Reconnect the position-feedback circuit.
8. Reconnect DeviceNet and/or 4–20 mA demand wiring as applicable.
9. Check shield and grounding arrangements.
10. Verify polarity and continuity before energizing.

⚠️ Do not assume every 8200-226 installation uses the same demand interface. The SPC can be configured for DeviceNet, 4–20 mA, or both, depending on the application.

Configuration Clone — Critical

1. Connect the PC using the approved SPC service connection.
2. Open the applicable SPC Service Tool.
3. Load the saved configuration into the replacement controller.
4. Verify actuator type and drive-current configuration.
5. Verify position-feedback configuration.
6. Verify position-demand input selection.
7. Compare all tunable parameters with the original configuration.
8. Save the replacement configuration before commissioning.

Stage 4: Power-On & Testing

Estimated time: 30–60 minutes

1. Confirm the actuator is in a safe mechanical position.
2. Check the 24 VDC rail for correct polarity and voltage.
3. Power the SPC.
4. Check controller diagnostics.
5. Connect the SPC Service Tool.
6. Verify the loaded configuration.
7. Confirm the position feedback reads correctly.
8. Apply a controlled low-level position demand.
9. Verify actuator movement and feedback direction.
10. Test minimum and maximum commanded positions within the approved operating limits.
11. Check the actuator for oscillation, excessive current, or abnormal movement.
12. Verify the control system receives the expected position status.
13. Test the configured fault response.
14. Record the final configuration and diagnostic status.

⚠️ Woodward has issued a service bulletin concerning Position Demand Fault Response on affected SPC units, including 8200-226. For systems where loss of both position-demand inputs requires the actuator to move to shutdown, verify that the configured fault response and firmware are appropriate for the application.

Frequently Asked Questions (FAQ)

1. What is the Woodward 8200-226?

The 8200-226 is a Servo Position Controller (SPC) used to position hydraulic or pneumatic actuators. It accepts position demand signals and uses position feedback to control the actuator. Woodward identifies it as the successor to the 8200-224 and 8200-225.

2. What power supply does the 8200-226 require?

The documented supply range is 18–32 VDC, with 24 VDC nominal operation. Woodward documentation should be used to verify the power-supply arrangement for the specific installation.

3. Does the 8200-226 support 4–20 mA?

Yes. The SPC can receive a 4–20 mA position-demand signal. It can also use DeviceNet, depending on the configured application.

4. Can I replace an 8200-224 or 8200-225 with an 8200-226?

The 8200-226 was specifically released as a replacement for those earlier SPC models. However, the complete actuator configuration, feedback device, demand interface, firmware, and application settings still need to be verified before commissioning.

5. Will the controller retain my existing settings when I replace it?

Do not assume that it will. Woodward provides a specific procedure for loading a saved configuration into a replacement 8200-226. Back up the existing configuration before removing the original unit whenever possible.

6. What should I verify if the replacement actuator moves incorrectly?

Check the position-feedback wiring and scaling first, then verify actuator drive-current configuration, demand-input selection, and calibration. A controller that powers up normally can still have incorrect feedback polarity or configuration.

7. Is there any firmware issue I should check before commissioning?

Yes. Woodward issued a service bulletin covering certain SPC configurations and the response to loss of both position-demand inputs. For an installed 8200-226, check the firmware revision and Position Demand Fault Response configuration against the applicable Woodward service documentation before returning a safety-critical actuator to operation.
