Key Technical Specifications
- Manufacturer: Yaskawa
- Model: JGSM-06
- Part Number: 73051-00060
- Product Category: Position Controller (Motion Controls)
- Series: JGSM (sequential part numbering with JGSM-05, 73051-00050 — a related motion controller)
- Front Panel: Control switches/interface for direct access
- Status Indication: Power status LED
- Form Factor: Compact, module-style design intended for combination with other control modules in an automation system
- Application: System control device for building out a complete automatic control system configuration
I don’t have manufacturer-published electrical ratings (input voltage, current draw, communication protocol, connector pinout) for this specific model — those aren’t published in any distributor listing I could verify. Pull the nameplate rating and connector type off the physical unit, or request the Yaskawa manual reference number from your supplier, before finalizing an installation.
Product Introduction
The Yaskawa JGSM-06 (P/N 73051-00060) is a position controller from Yaskawa’s JGSM series, built as a system control device for integration into larger automatic control system configurations — commonly found supporting Motoman-era robot and motion-control installations. It combines with other JGSM-family modules to build out a complete control architecture, with front panel access for direct operator interface and a power status LED for at-a-glance diagnostics.
Buyers source this part almost exclusively as a maintenance replacement for an existing JGSM-based control rack — sequential part numbering with the JGSM-05 (73051-00050) suggests a small family of position/motion controllers built for interoperability within the same system generation, so matching your existing module revision matters more than chasing the newest available stock.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Power status LED off | Loss of supply to the module or backplane | ❌ Low | Measure supply voltage at the rack/backplane feeding this slot | Check upstream power supply before replacing |
| Front panel unresponsive | Connector/backplane seating fault | ❌ Low | Reseat the module, inspect edge connector for wear | Clean contacts and reseat before condemning the unit |
| Position feedback errors, motion faults at this controller | Internal module fault or upstream sensor/encoder issue | ✅ High | Isolate by substituting a known-good module if available, or check field-side encoder wiring first | Confirm field wiring is good before replacing the controller |
| Intermittent faults tied to one slot only | Module-level fault | ✅ High | Swap module to a different slot (if compatible) to isolate | Replace if the fault follows the module |
| System runs but with degraded accuracy/response | Aging module drift or unrelated mechanical wear | ❌ Low | Compare performance against a known-good module or baseline spec | Rule out mechanical causes before replacing electronics |
Most field failures on this type of position controller trace back to connector wear or field-side sensor issues rather than the module itself — isolate before you replace. If you’re still stuck, contact technical support with the exact fault code (if your system displays one), a photo of the module nameplate, and a description of when the fault occurs.

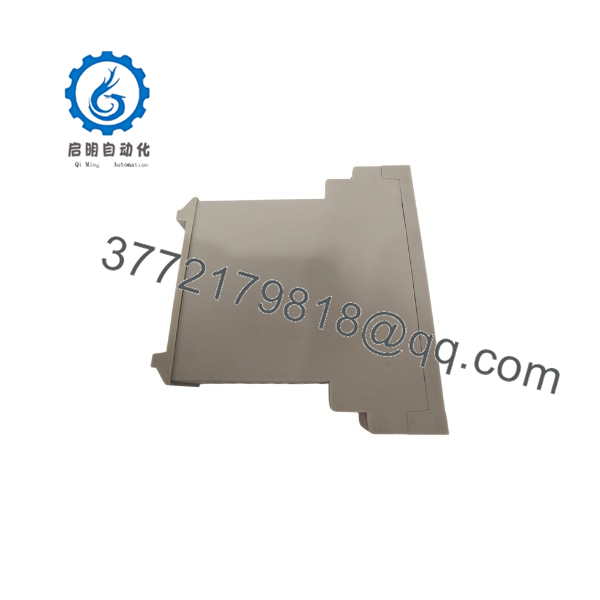

JGSM-06 73051-00060

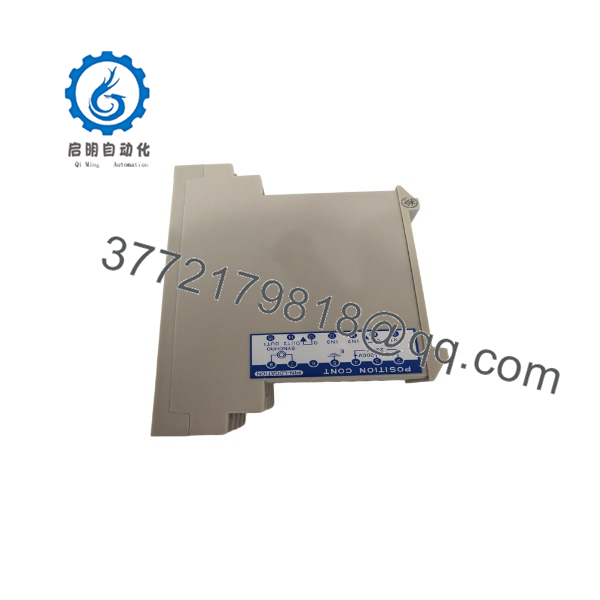

JGSM-06 73051-00060
Frequently Asked Questions (FAQ)
Is the JGSM-06 still in current production?
No indication of current Yaskawa production — it shows up only in the used/refurbished/repair market across multiple industrial parts resellers. Treat this as a maintenance-stock item for an existing system, not a part you’d spec into a new design.
Can I substitute a JGSM-05 for a JGSM-06?
Don’t assume it. The sequential part numbers (73051-00050 vs. 73051-00060) suggest a related family, but “related” doesn’t mean interchangeable — different position controllers in the same series commonly have different I/O counts or feedback resolution. Verify against your system’s parts list or a Yaskawa manual reference before substituting.
Why is this cheaper than sourcing new from Yaskawa?
Because it’s used, refurbished, or repaired stock — not new factory production. Ask your supplier directly what “tested” or “refurbished” means for this specific unit: a functional test on a matched load stand (as some repair shops describe) is a stronger claim than a simple power-on check. Get that detail before you buy.
Does swapping this module require reprogramming anything?
Possibly — depends on whether your system stores position/motion parameters in the controller itself or upstream in a separate CPU. Document your current configuration (settings, any DIP switches, or parameter backups) before pulling the old unit, the same way you would with any motion controller swap.
Is it hot-swappable?
Treat it as not hot-swappable. Power down the system before removing or installing this module — pulling a position controller live risks a motion fault or unexpected axis behavior on an energized system.
What warranty applies to a used or repaired unit?
Terms vary by seller — some repair shops on this part offer a 2-year MRO warranty, others list shorter 30-day terms on straight used stock. Confirm which applies to your specific purchase in writing, since there’s no factory warranty path on a part this far outside new production.
