Emerson 1C31227G01 Ovation 8-Channel 4-20 mA Analog Input Personality Module

Parameter Specification
Manufacturer Emerson
Exact model 1C31227G01
Product type Ovation analog input personality module
Input type Current input
Input range 4-20 mA
Number of channels 8
Channel isolation Individually isolated input channels
Loop power Field-powered or locally powered current loops
Local auxiliary supply 24 VDC

Description

Core Product Summary

The Emerson 1C31227G01 is an Ovation 8-channel 4-20 mA analog input personality module. It forms the current-input portion of the Ovation 14-bit analog input subsystem and interfaces process-transmitter current loops to the matching electronics module.

The module provides eight individually isolated 4-20 mA input channels and supports both field-powered and locally powered current loops. It conditions the incoming current signals, provides surge protection ahead of the electronics module, and must be used with the documented 1C31224G01 electronics module in the 4-20 mA configuration.



Key Technical Specifications

Parameter Specification
Manufacturer Emerson
Exact model 1C31227G01
Product type Ovation analog input personality module
Input type Current input
Input range 4-20 mA
Number of channels 8
Channel isolation Individually isolated input channels
Loop power Field-powered or locally powered current loops
Local auxiliary supply 24 VDC
Matching electronics module 1C31224G01
Subsystem resolution 14 bits, including polarity
Conversion rate 50 samples per second at 50 Hz configuration; 60 samples per second at 60 Hz configuration
Guaranteed accuracy at 25°C ±0.10% of full-scale value ±1/2 LSB at 99.7% confidence
Temperature coefficient ±0.24% of full-scale value over 0 to 60°C
Operating temperature 0 to 60°C (32 to 140°F)
Storage temperature -40 to 85°C (-40 to 185°F)
Humidity 0 to 95%, non-condensing
Main power 2.4 W typical; 3.125 W maximum
Auxiliary power 3.84 W typical for eight inputs at 20 mA and 24 VDC
Certification context 4-20 mA configuration is CE Mark certified



Engineering Selection Highlights

  • The 1C31227G01 is a personality module, not a complete analog input subsystem; it must be paired with the matching 1C31224G01 electronics module.
  • It accepts 4-20 mA current signals, so it is selected for two-wire or four-wire current-loop transmitters rather than voltage-output instruments.
  • Eight individually isolated channels allow multiple current-loop devices to be connected without sharing a common input path.
  • The module supports field-powered loops and locally powered loops supplied from the 24 VDC auxiliary source, so the loop-power architecture must be confirmed before wiring.
  • The 14-bit analog input subsystem provides 50 or 60 samples per second, depending on whether the system is configured for 50 Hz or 60 Hz operation.
  • Surge protection is provided ahead of the electronics module, supporting the protection of the analog input circuits.
  • The 4-20 mA configuration is the CE Mark certified arrangement within this analog input module group.

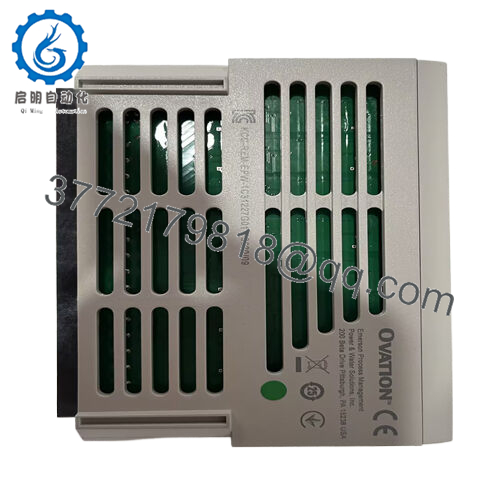

1C31227G01

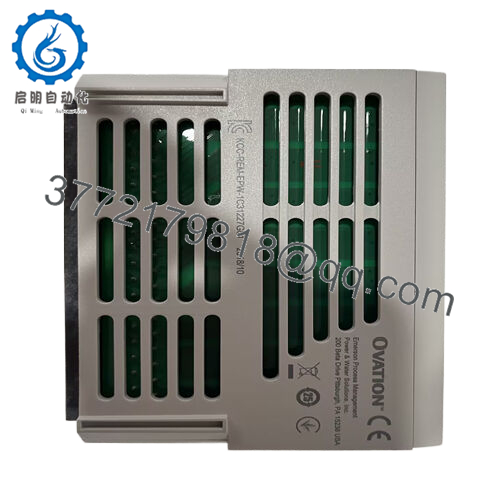

1C31227G01

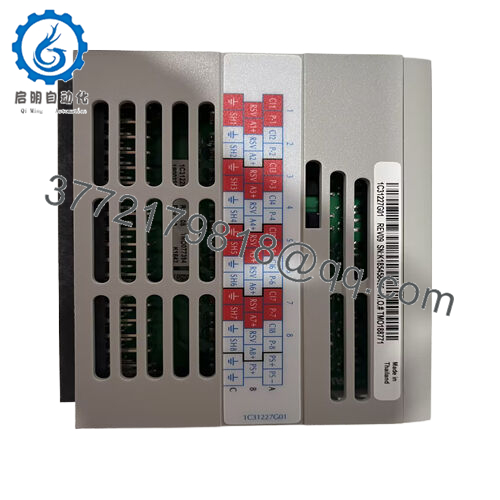

1C31227G01

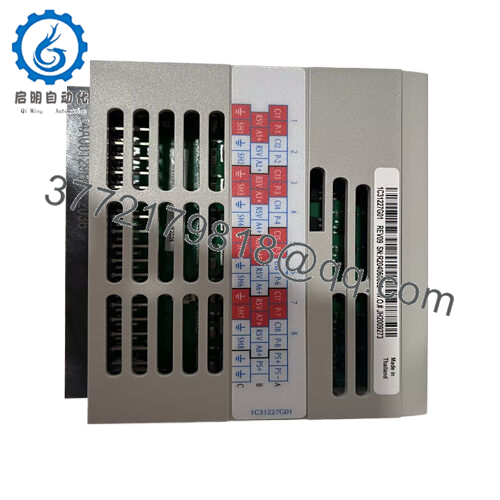

1C31227G01

System Compatibility & Integration Requirements

Item / Dependency Verified Compatibility or Requirement Practical Note
Control system Emerson Ovation The module is part of the Ovation analog input subsystem.
Electronics module 1C31224G01 Required for the documented 4-20 mA current-input arrangement.
Input signal 4-20 mA current loops Use for current-output transmitters; it is not the voltage-input personality module.
Loop power Field-powered or locally powered Locally powered loops use the 24 VDC auxiliary supply.
Auxiliary power 24 VDC Typical auxiliary consumption is 3.84 W for eight inputs at 20 mA.
Field wiring Shielded twisted-pair wire Required for each current-input field connection.
System configuration 50 Hz or 60 Hz Determines whether conversion occurs at 50 or 60 samples per second.
Calibration On-demand self-calibration by the Ovation Controller Calibration is initiated by the controller.



Dimensions, Mounting & Connection Notes

The 1C31227G01 installs in the Ovation I/O subsystem as the current-input personality module for the 1C31224G01 electronics module. Each current-input field connection should use shielded twisted-pair wiring.

For locally powered current inputs, the auxiliary power arrangement must be designed for the 24 VDC supply and the current drawn by the connected loops. The available exact-model documentation does not provide module dimensions, weight, terminal torque, wire-size limits, or mounting-clearance values.



Detailed Product Overview

The Emerson 1C31227G01 is the current-input personality module in Emerson’s Ovation 14-bit analog input subsystem. Its role is to define the electrical input interface for the analog input electronics module: it accepts 4-20 mA current-loop signals and prepares them for conversion by the paired electronics module.

The module provides eight channels, each individually isolated. This channel-level isolation is relevant when multiple field transmitters are connected to the same cabinet, because it helps prevent one loop’s electrical conditions from becoming a shared path for the other inputs. The module also performs input conditioning and provides surge protection ahead of the electronics module.

Loop power can be supplied in either of two ways. Field-powered loops receive their excitation from outside the Ovation cabinet, while locally powered loops use the 24 VDC auxiliary supply. At full 20 mA current on all eight inputs, the auxiliary supply consumption is documented as 3.84 W typical, so loop-power budgeting should account for the actual number of locally powered channels and their current demand.

The paired 14-bit analog input subsystem resolves the measured signal to 14 bits, including polarity. Conversion occurs at 50 samples per second when configured for 50 Hz operation or 60 samples per second when configured for 60 Hz operation. The documented accuracy is ±0.10% of full-scale value ±1/2 LSB at 25°C with 99.7% confidence; over the full 0 to 60°C operating range, the temperature coefficient is ±0.24% of full-scale value.

The 4-20 mA configuration is the CE Mark certified member of this analog input module group. The 1C31227G01 should be selected only when the field signals are current signals; the companion voltage-input personality module in the same subsystem family serves voltage ranges instead.



Applications & System Role

In an Ovation control architecture, the 1C31227G01 provides the field-side current-input interface for analog process measurements. It receives 4-20 mA transmitter signals, conditions them, and passes them to the 1C31224G01 electronics module for conversion into controller-readable data.

Suitable fit scenarios include monitoring process variables from current-loop transmitters such as pressure, flow, level, and other analog measurement devices. The module is appropriate where the field devices provide 4-20 mA signals and the Ovation analog input subsystem requires isolated current inputs with either field-supplied or cabinet-supplied loop power.



FAQ

What is the Emerson 1C31227G01?
It is an Emerson Ovation 8-channel 4-20 mA analog input personality module used in the Ovation 14-bit analog input subsystem.

How many input channels does it provide?
It provides eight individually isolated 4-20 mA current-input channels.

Which electronics module does it require?
It is used with the 1C31224G01 electronics module in the documented 4-20 mA current-input arrangement.

Can it accept voltage signals?
No. The 1C31227G01 is the current-input personality module for 4-20 mA signals; the voltage-input module in the same subsystem family is 1C31227G02.

Does it support locally powered transmitters?
Yes. It supports locally powered current loops using a 24 VDC auxiliary supply, as well as field-powered current loops.

What is the conversion rate?
The subsystem converts at 50 samples per second when configured for 50 Hz, or 60 samples per second when configured for 60 Hz.

What wiring is required for field connections?
Each current-input field connection should use shielded twisted-pair wire.

What are the operating temperature limits?
The subsystem operates from 0 to 60°C (32 to 140°F) and can be stored from -40 to 85°C (-40 to 185°F).
